I forgot to mention my parameters for this project. Besides the ones set out by the build-off itself (build in one day), I imposed some of my own limits:
- I want to use only lumber I already have on hand.
- I want to use only tools I already have (no new tools just for this).
- The stool should have a small-ish footprint to avoid being more trouble than it is worth, as my shop is only about 100 square feet in size. I'll call it a bonus if this stool fulfills multiple functions to earn it's real estate in my shop. Bonus #2 is if it happens to look nice.
It should be easy enough. Right?
I settled on a rough shape similar to a bar stool I saw at work. Except, instead of being engineered to be mass produced cheaply, mine will essentially be a Windsor chair. At least, it will have a solid seat that the legs bore into.
If this is what I want, I need to make the ends of my legs round.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg3t_Uw4PCqzbJ5815SLz9_hy9v_TnLp0w5VEbl3SM3wlkkTem9PvYl2TrUvukEpdMfSjWcloAwlYzsQSv5YWW3xiKONF0CMgt2dIJCpHVY42Gonpbq6f5AwX4K3KAzJizboizkinfn96o/s1600/DSC03124.JPG) |
A triangle to keep the legs in order. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjtAt8oxpqAe4gD4yXwW6JM8nacJVbR2u_kxGCVSyHULG9lvnghvU_fiUpNeM9eiVpAfnFMH0zUy3E1WS-kEGQo2Kg8Igpqm0Ap5eY__4nUWmT1dWkPgYn-DeQgr9rJD5xiN0SYDAS-j0A/s1600/DSC03125.JPG) |
I'll attempt to find the center of this 8-sided shape, so I can draw a circle. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg0Nr_UfDfXlkCS2hifSZtKCF9JS_JBJJEuC14Lu5f5ooTHBt7Afy68p0vfJ4te8sMvDZdhr3s__Lnnom1red2swmfN6SQ4M9WEk2Wf_q2HERTQ4VEoMgElJBTDdNkeRXsT0qIpwWVCNtw/s1600/DSC03126.JPG) |
Close enough. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEinEruWscW3V7fD3GM2j53RJzMRP9YH3V21sPHFYYH4jJIKVgqxGnVTal0Hj31gff4TmFHMjSbyKRkhPgP6W9YDsv_FmxIob1cowRT8DBFaeWlVypZfuAArRj3DcB8njPRbTcJwJytHxyQ/s1600/DSC03127.JPG) |

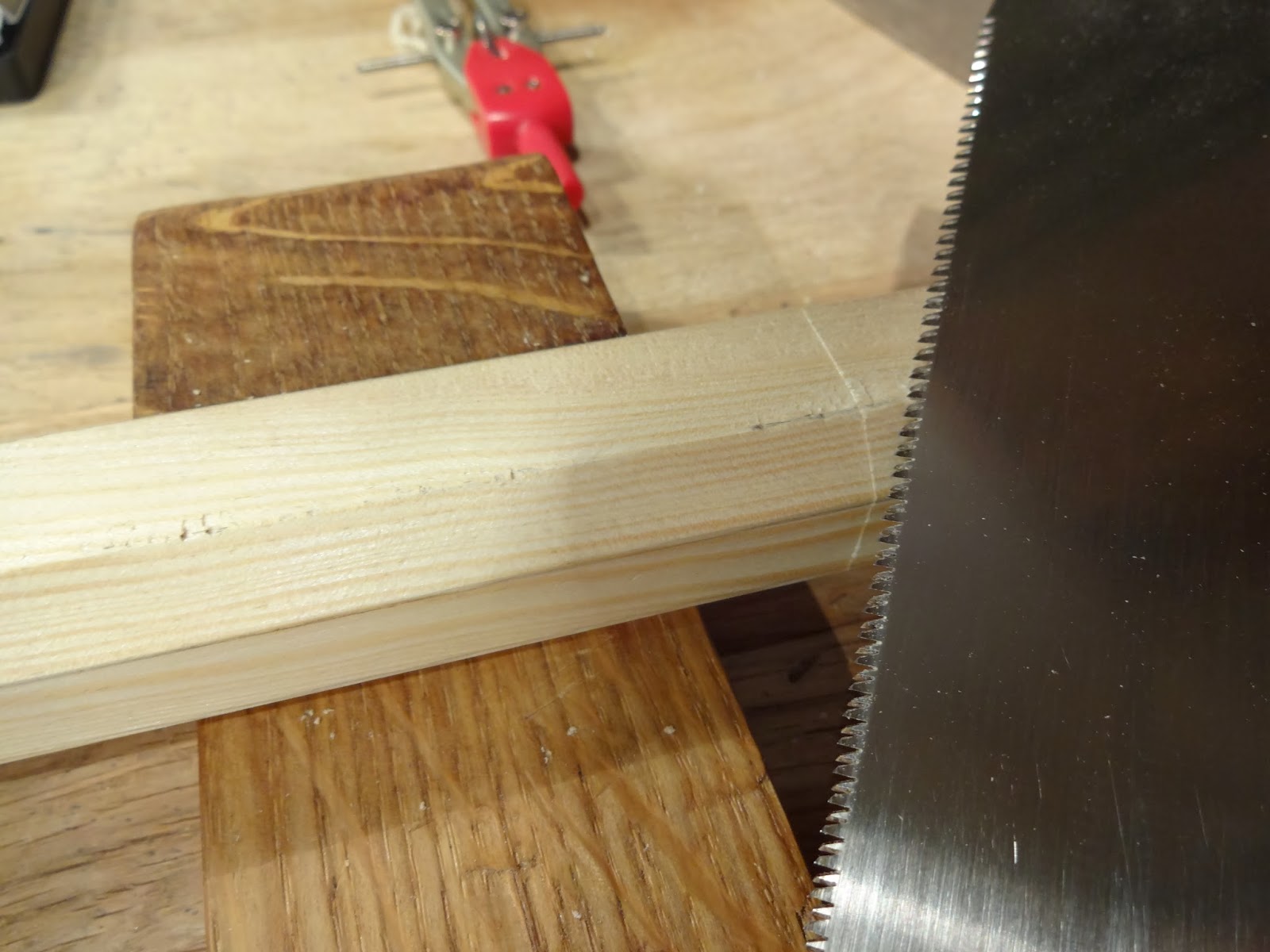

This is a temporary shoulder. It is square, and once the leg is installed, it will need to be trimmed to whatever angle the leg happens to be at. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgDlW-y6JouJIIOgNPV0qJBQlKmt1b2nzJOHNUaDXzfF2F1pFJKf5Lwda48eDsZR1CmWWHpwL4tWNn7uszuk_AA8-anTsKoxClGPEcZ_ExMt4b07h8xzd8vjmXDpvjwpS9QKfXh_afVdOo/s1600/DSC03128.JPG) |
Ready to make the end a dowel. I'm sure there are some great tools to do this with. I don't have them, so I'll use a chisel, a rasp, and whatever else I can find to do this the old-fashioned way. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhCjlLE089Jp_siuGUwyWyNmStBuZlg2spmJWLdRoBXeAYDp7P1u6KCHtK9x4toaD4MdCO8aO4tFEEczEwVWFCRsEJPyZP7sCu7p-JQNEbingmo3zqOGho_Y-GpplWrIG6JnhDHkDWe5qk/s1600/DSC03130.JPG) |
So far, so good! |
|
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh4G3U3lZR-WlG2vxF8MLjLvSgZnOLhnuAKm_JBXGeg9D7Ut_nhF-4IAg1ZKXBwTzDrd04uHv4ChVJwiaSzM5iZXG9nwtmpMl4cdKOpAYwfmNgin_WXs2jqJE6ID-X9VhxZba1yH1jw3OY/s1600/DSC03134.JPG) |
It fits in my test piece! |
Next up:
Fitting the legs to the seat.
View the rest of my build
here.
