Sunday turned out to be very busy for me in the shop. So busy, that I found it too difficult to keep up with my progress here. I did, however, post a few pics on Instagram.
I finished the shelf, but did not yet finish the drawers that were supposed to be an integral part of the design. It looks a little funny with that one strip of dark wood on the divider. That's because that is the same wood that will be the two drawer fronts. Maybe I can get them in over the next few days. In the meantime, I'll submit this shelf as it was Sunday night when I completed it.
Here are some pics of what I did on Sunday after my last post.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjfIWIQhWK1h5q2nJWDTP_ho0025vNQxQ7d8F2TdLlOHli7YQrZAw105Wxobk9nULY9lw2uJLpXy7NG2KABuiHcK6BlUBtSq-0Zi0aJO4PGMODFCTLCOF_3xmrW0GcvwxHWm3RkOrihWKiw/s320/IMG_7658.JPG) |

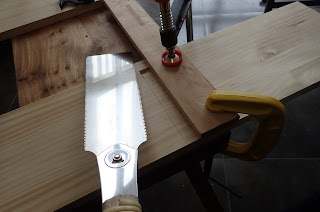

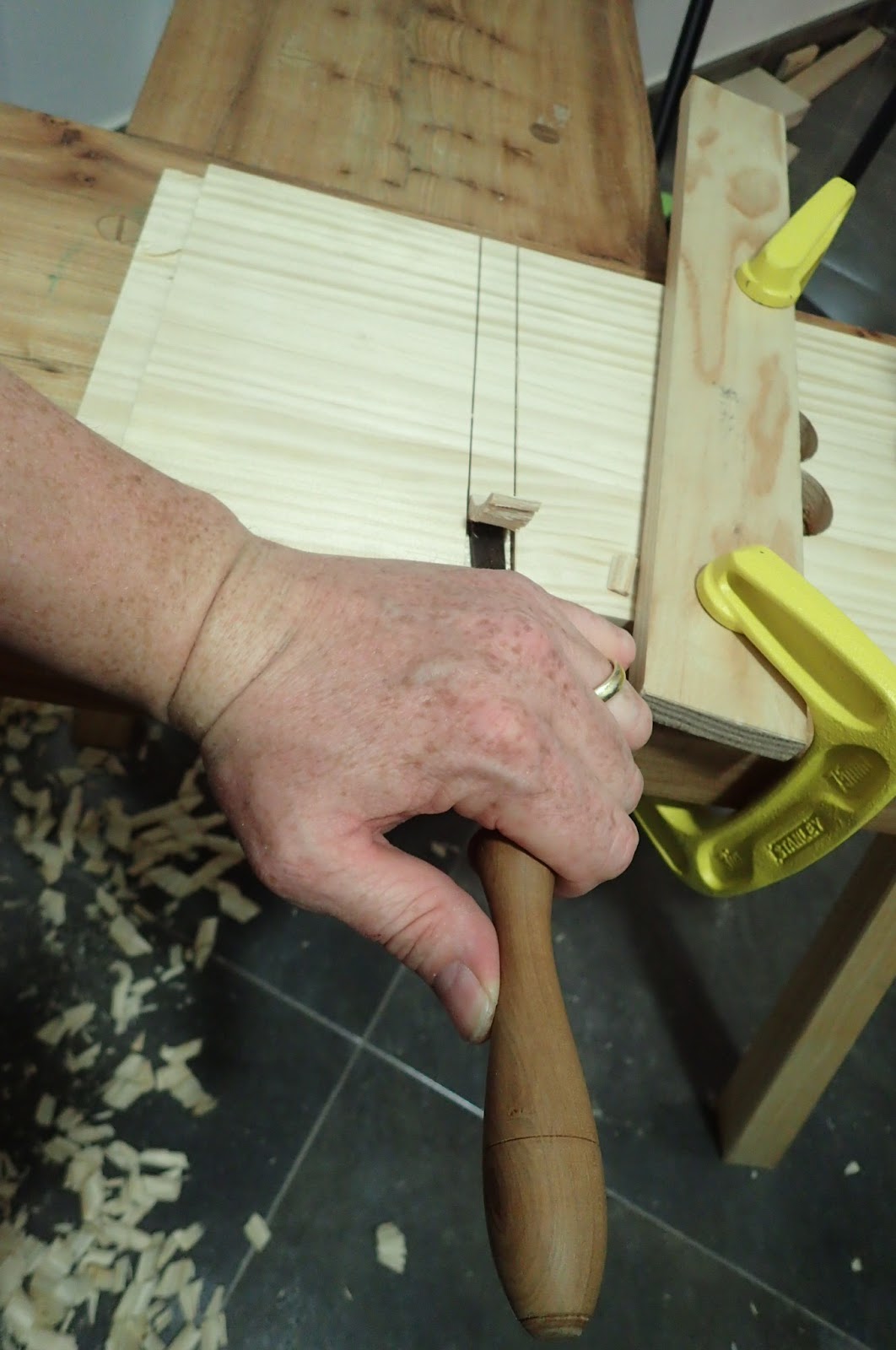

I have an idea for the divider that requires stopped dadoes. It's only a little more complicated than through dadoes. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhWSv-F4XSSPFoM4itA3oCY_2Ai3fz78gk1CQeRYfZ44RZ0qJUVBi8S31UOv6xlGZrqDhayva91fRcT1Y3a_O0_QsCM-UvbOxFugfNNBV45GMEaBWQ9SzLdSrBDA4s4z1e2L_-M4eLpYDMs/s320/IMG_7659.JPG) |
No router? No problem. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEirht4DWh3OKu4oEB2lA2ii_advhQJ9UjbF58a0uHJ8Ew4pBt-py2V07po0yQd6Tf_XtaMPym5uiWlD-i8aDBsOsNxsoN9khaiXhyro-pruBty8Rdli9K8CER8gYgsLaHn09qqP1vSSPz-y/s320/IMG_7660.JPG) |

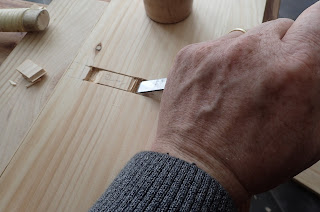

Except this part. This part was a little harder. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgJlczQohKH7v3UgqP175SCUvVoPwqLMHI0GLxG6NuE0HSWxJZArmZb8348jvasdsxE_hyphenhyphenNj09jtlGtq95mA7DFjt9vCmiNUrIlYCGRFwpiQhqfimWLgAzciFUVkn_rOy-3XqUlU2dg20E8/s320/IMG_7661.JPG) |
Not perfect, but this will suit just fine. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEje3GaD0LNpJZG3BJLGgijJcfgXsJQZ4LlAXWqXubVB18M1aUq5Vfl44QxqoKbalohIXawQoV3aIPDnMWd2hNiMCFKBgMBX_rjh7mvShfwEiGKyd3ctVW8-YH5Dd2XAEmlZhLe3qmxWrOwh/s320/IMG_7663.JPG) |

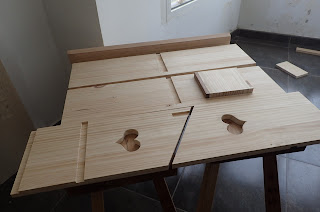

All parts for the carcase are done. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiKZ-e0srUs7DlGe2r_zppa29lY5pmtpuMPbrfX8vB1Is4idMXDIUK1oJZeK3Os0HDdc8sht0XfzVJItdngOkDFX8OqDbnHrsjkOhBiQEiDQP7c42gQWk9aPVqzVe_OdkNEhlfXOrc3Bv-_/s320/IMG_7664.JPG) |
I wanted to pre-finish the parts, so before glue-up I burnished all of the pieces, |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhrvYxDp8tYcuGepiO00ci2AuEPZ-O70wAL1FkBKnOzRfIej8lKy-x_DJtwDpobhZah7ufo7v9UVE03er_QUoUps4lkIM4wX9gWBA0JbX1hm6hvHqMY94m8QROu90-f9gYV83yR8zolVGfn/s320/IMG_7665.JPG) |

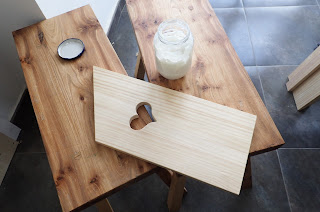

And applied a home-made soap finish. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjyeeqEP2soNpTiXNhP2f8VC87NvjVVMc2NDjt1sta7tIOEbORIBtg1hkP4aDXHlqMw2Q_Y_jl7c3XMY8Rpd1UQJdNHuFx5beD0ByNCB9fk-tN-uajsWlF-lcph0eZwSqDhda6bPnfhQ8ZO/s320/IMG_7667.JPG) |
This was actually the only parts I glued. Everything else is only nails. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjK3JE6x2SkOoE-1B3rzgJALdKyquLT4U2kaFYvD-_dsSEhDHTzZJfRBDm8p_RMvA-DnJTzNAhKLz63WybRraeIGaaWWqNp_Vaa_N3TnVjHgwkS6mU9VlPEl7WlQeVA1UXequeab4i5jtx6/s320/IMG_7670.JPG) |
First I lay out the nail holes. I learned the hard way that pencil lines are hard to get off after nailing. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhGJnjtikIe2Z70sf9F75fWSpHBuNOEH9sVbMBQPQaIPDlV04lqQb_oun2QspCzhvPcPZsoJ2deVlGSRUEL7CXe5LdWMnJm-nrSgWwxfRCHmVFnM7Tz_jKf3ra4T9qqNL8NEqoGTkEV4Euh/s320/IMG_7668.JPG) |

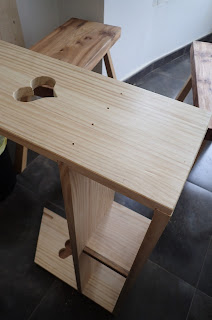

Drill pilot holes with a tapered drill bit. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjsEVk0IxrOOanIgKZjq-QWyR_Pvir3732ONaoyvVKGv0AMi7NpHrQhiWLkLhPwb29RMcMLm7nui7lyCftLp-sQ3H9KfeW_FfR3gvXi-VaalWm0Z4EfBqNLgM5jlMCQJ6NdIk7CV5-j9suV/s320/IMG_7669.JPG) |
Insert the nails, |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgLTbzFYVSqgvRVU34OHFCrJEBaAu2-haOa5NVH1hm6ZSf87A89PRUPDqhAmSlSKa-ZViRQcZ0NJj2JtAqnVZ6b3WMhgdn07PKO9sQyqkVGno_DiuNEqW0sNE5kM_bVvR6lERkH9WEIohc7/s320/IMG_7648.JPG) |
and drive them home. |
I had a hard time figuring out how to lay out the nails for the cross-piece. The top of my shelf is angled, so measuring wasn't simple. And, I wanted to leave too many pencil marks off of the finished side. My solution? Lay out from the inside of the joint.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh9CbXdT04S9AeYknx7rT1T-V-DYmMbvHI7OlROlqV6E2W_0eHG7IcMXt5ipnbnYtuyXiP8_S3cUX4DHYWa9XDioh02HLMQsHPDzvf6nM1Q3Nrc1928-5ENWAjkUUwV-q_-kKSmV0XiqsXs/s320/IMG_7672.JPG) |
I marked where I wanted the nail holes, then drilled with the tapered bit just until... |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjafe7d_x9MpMDPa03lAjpOZtFGeeFpFpSL9dCm1VudVoHP0DDyzfQYa_4mxP7ey0RXJUW1MBwqsH8IMTGO4Mz3T_2ziFOrsCq6tdrngeYxDam1tQmzvYMJ2b2mP06Y0weCsZQGIAmIuM-n/s320/IMG_7673.JPG) |

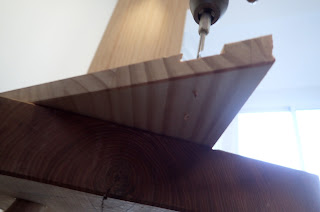

It starts to poke out the other side. Then... |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiQswwxh2foG1A_yCk_Mhkyiz87V1ecIJlGktCCsV8FKBLNQosjQT4DAkJAe_96EBC_aIeNcQNSW2f8pDH2h3jnpOvGBh58B0BnRDHB_JDvmedyfDR1s274vWWYvLZA3lLZCBKy_8V5uPMz/s320/IMG_7674.JPG) |
Put the joint together and drill the entire pilot hole. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgQroS_C7FgiJ3LLLDD1VmrzgDDFSGpNFr-51IVhw3lyUiEs8eo7z1sk7czZ6ouGmc4mMgAFwfZKy_FA9qP9bddXbTqjPeHy6-OVb-rRwgKL_M7qw1lLPA9HYXQAJ43Yq1LqS-m-o3vT8cs/s320/IMG_7675.JPG) |

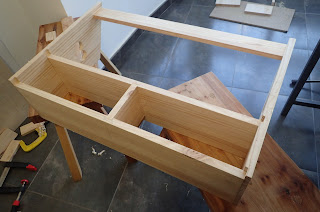

Everything is together surprisingly well! |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiCwqkjXiSFzQB_ZH-XFTOFvy9Mv4LNQBCtUJpJhAbOqnKTqqEFkF9Qn71DE5GCJ18o-D2l55s-PMdcbe2Mg-gFg4EvNjOAcydOlnYGryfdGdOQ_sDchhxDpL9N2ZSOr96f9RRFnyaCFCmy/s320/IMG_7676.JPG) |

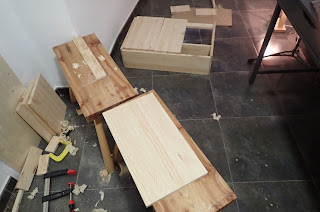

Now it's time for the back. I cut three pieces to length. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiAtGdQ_znByHq3tCYl3dSAAZEiK8JWBzES10uQ8_SU6TJIeeTnvEOnBnrTECcvhJUtMRUzhiR9NIDVZfdV9Y4eJzHxYXZ6U57n7UZI-2-RwZ0uUGpDlf_iCVWShytkYh54HJX3nVXRY6kt/s320/IMG_7677.JPG) |
Then I used my self-made ship lap plane. This thing is coming in way more useful than I ever thought it would. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhzfSxxJ9usAvembHdH4O0aJroI4RqAdfjxycUHC1jyhSCm8C4Ie-qdnzIIiXiw2hSXKfLrIsjM_ScJbwYlpm-r14GVJUxGJKoJPrNzROrLNkVMb8mhakvxdfcAhBFPIEZGgSZIc1qM-LoK/s320/IMG_7678.JPG) |
Once the ship laps are done, lay out the pilot holes and drill. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh6_L_JLc_Yap8g1DqlSg2IF4DIYIETLaccTkOQsOZxxBdxuCXycLS8JFIHGIWrJSu-759KzRswB1FCasgyLsUvW31w-vdTKKJfftIFP4EujtblMuUay0N3_5khiwiyODvmMRZm41D6k4K6/s320/IMG_7679.JPG) |
Nailed it! |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEi_EwhEhmOu658KDOUKlp_FsslrT0y9qn6hyphenhyphen3oVMeogqq49NvBvgkiKBCtZwe9L2XiI41CKeTlC0LAXmsixhHC0aClA2tXehWcLCmVKEqiSYbRSqHntzQj9Vdm71XF2UQZWdYsWnbw0LKt-/s320/IMG_7680.JPG) |
All that is left is to trim the top pieces. I used a jack plane and a flat bottomed spokeshave. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhwYUb2G5FDwnkxZBzIcDsgZe90fPPFunykUJPU1fCFsC0_9eD_YAWOzRlK6PiNlR4Xb8OVlMtbdXGARDsdVEYr6gNrHFCSoAPhR2-8ANZM87S3slD-zlxeTL0LT5bOIuNJgSaqUC1D9pgn/s320/IMG_7682.JPG) |
Finished! At least, as finished as it will get for this Build-Off. |
The last step I took on Monday morning was to photograph my masterpiece in the sunlight. If it isn't the best shelf ever seen, at least it will be photographed in a spectacular location!
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjaTk5yWXhyphenhyphen6jzypDPdPRgRbvXNwt2LTCIjAYcy1H3ojb6Lfbla8P7u5zognEasxktBwq1Q50s7CDSdS8a84HPzcezFES43KZxvBPSNTHWwjKkZTAVYG8MBgBrmc8ilA892wL4OscNhGjSR/s320/IMG_7691.JPG) |
It involved a hike. |
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgv2kYYSv_-5mRz_ubmtp6HVDmoR42CzdQVjZqA_yPJuEr4uMmk_uU9Npi4DsF_FKaM1F-7vfq-l9SAUYHOvOLUdslim6IqtYYltTrF2CSvQ8ZRHbkPF_JhqpjuIWlsRuiMnIrBWsAYmL-D/s320/IMG_7689.JPG) |
But the view is great! |
