Experiment: Making My Own Cold Bleached Linseed Oil

I was always happy with standard boiled linseed oil (BLO). It's got a lot of great things going for it: it's widely available at any hardware store, it looks great as a finish on it's own, it can be combined with other things to make different finishes, it makes a great wipe-on finish, etc.

My only beef with it for a long time is the smell.

It turns out that BLO isn't boiled at all. Nowadays, raw linseed oil (which works as a finish, but takes weeks to dry making it unhandy) is mass produced by adding metallic chemical drying agents such as manganese and cobalt which through the magic of chemistry makes the linseed oil dry relatively quickly.

A quick internet search produced a Material Safety Data Sheet (MSDS) for some BLO, which includes this:

Effects of Overexposure:
Inhalation:  Vapors may cause irritation of the respiratory tract.
Skin:  Prolonged or repeated skin contact may cause irritation or dermatitis.
Eyes:  Contact with eyes may cause burning and tearing.
Ingestion:  Ingestion of large amounts may cause gastrointestinal irritation.
Chronic:  Not Available.

Overall, it looks pretty safe. But not totally. I wouldn't drink it.

Then, I was ruined by Dictum. They sell a Swedish cold-bleached linseed oil.
Linseed oil from Dictum. Also, some great smelling turpentine balsam, and some natural tung oil from Denmark.
This stuff is great. No chemicals, it smells great, and it works fantastic! After a little bit of research, I think I know how this was made, and I am going to try to replicate it in my apartment.

What could go wrong?

The first thing I found was this great YouTube video by Joe Besch:
His website led me to a page on Tad Spurgeon's website. Mr. Spurgeion's passion is oil painting, and shares on his site how oil paints made by the old masters were made from linseed oil.

I figure if this is good enough for the old masters, it should also work for woodworking.

Enough blah-blah. Let's get to work:

First, instead of pressing my own flax seed, I ordered a liter of pure, quality raw linseed oil from El Barco, a local paint shop in Valencia.
Raw linseed oil.
Once it arrived, I went for a walk down to the beach. Joe Besch's video shows him adding sand, salt and marble dust to his mixture, but after reading Tad Spurgeon's notes, I am convinced that plain sea water and some sand from the beach should work great. These additives, from what I can figure, are to help purify the final oil similar to running water through a sand filter purifies the water.

I'm not sure, and if you would like to try it, I'm sure you'll have success using only tap water.
Believe it or not, you can buy sea water at a local grocer for 3.99/liter!
It was a bit stormy, but my trek was successful.
beach sand and seawater. And who-knows-what.
There was some dreck in the water, so I filtered it out with a paper towel.
Filtering the sea water.
Then I washed the sand by filling the jar with tap water, fixing the lid and shaking like crazy. I dumped the water out and repeated until I didn't feel like doing that any more.
The clean sand.
Likely, I used way too much sand. I think much less would have worked just as good. Once I dumped the liter of linseed oil into my two liter jar over the sand, I figured it was too late to take some out and we'll just have to see how it goes.
Next I dumped in my raw linseed oil.
Then, I topped off the jar with sea water. I would have liked a 50-50 mix of oil and water, but this is where we are. I think it should do something.
Oil on top, the water sank below it, and the sand is on the bottom.
Next I shook the jar like crazy until everything was mixed.
After the mixture was shaken. Not stirred.
Over the next couple of hours, I shook it up again. Joe Besch suggests three times.

Then, let it sit in the sun.
Waiting...

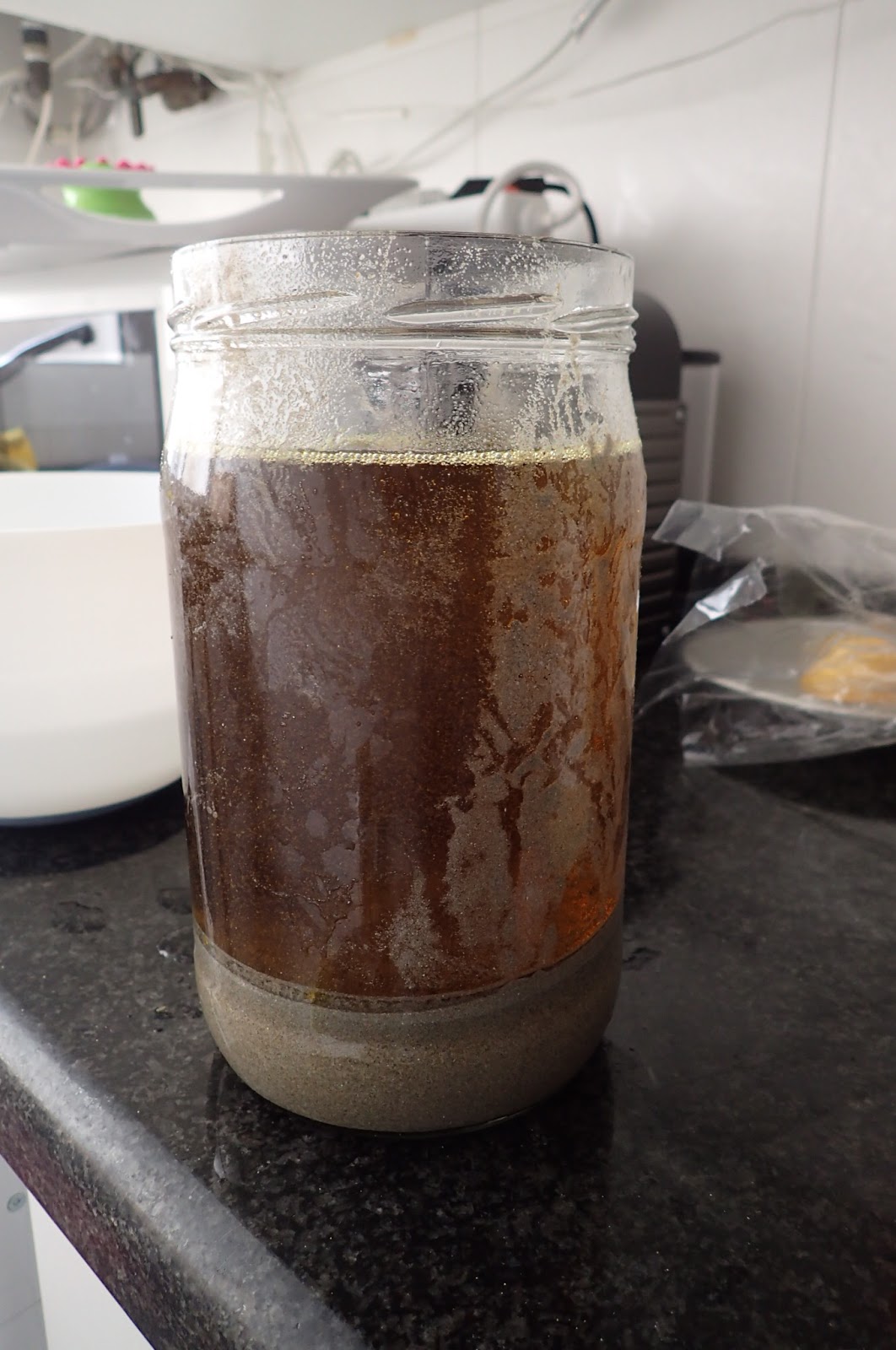

After an hour or so, you can start to see everything separating nicely.
After an hour.

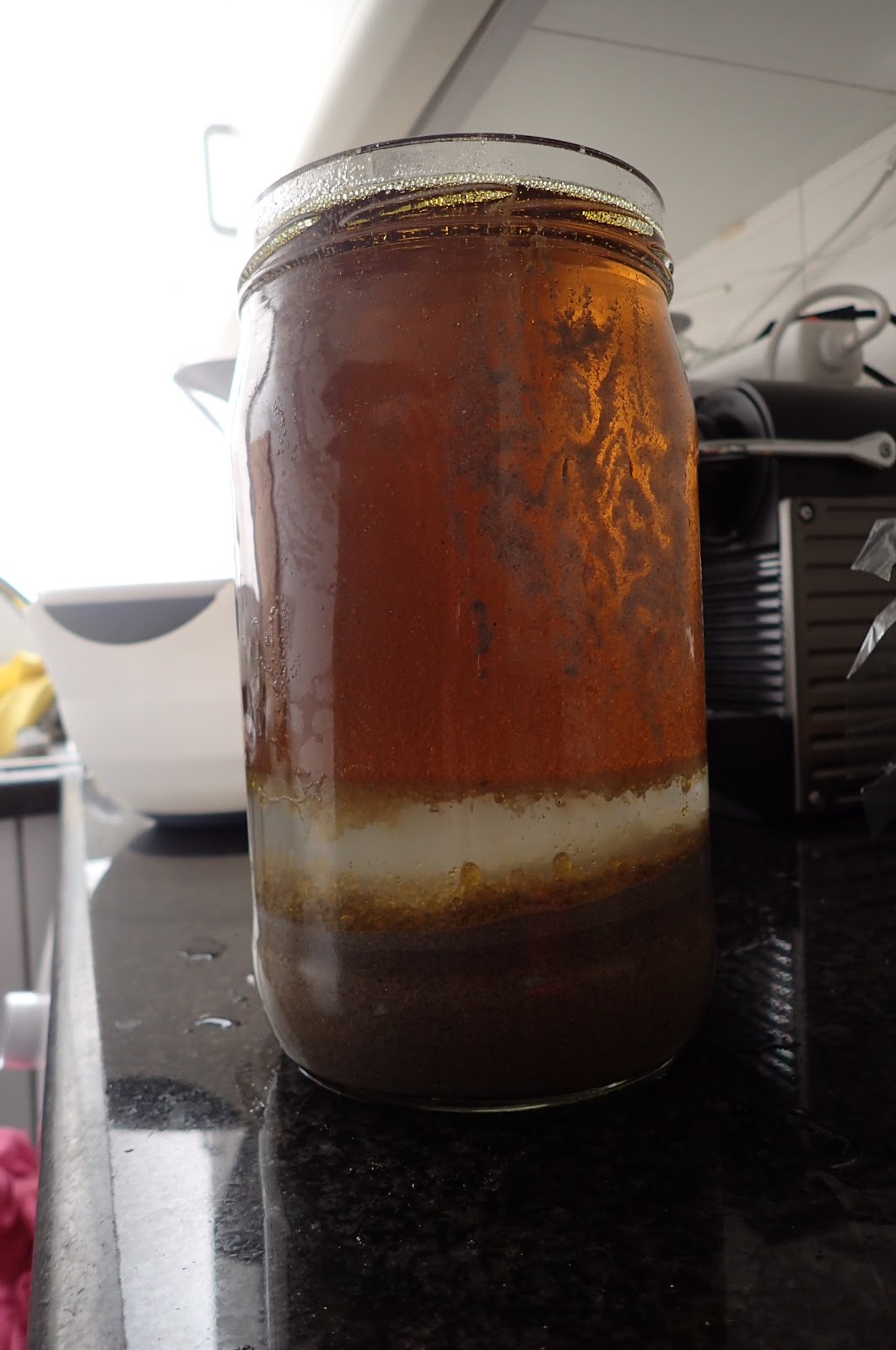

And the last photo is where we are this morning, after about ten hours of rest.

If you are wondering what you are looking at, you can clearly see everything settling in layers. The bottom is the sand, and the little black bubble looking things above that is actually clear water. It is heavier than the oil so it sinks to the bottom.

The yellow band is a layer of fat we've just rendered out of the raw linseed oil. I suspect this is the stuff that prevents raw linseed oil from drying quickly.

The brown layer on top is the good stuff.
The next morning.
No earlier than tonight, and likely tomorrow, I'll extract the top layer using a baking syringe that I bought for the purpose. The idea is to get the pure stuff off the top without any of the unwanted stuff below.

I'll follow Joe Besch's advice and do this process again with my refined oil. I imagine after a couple times of this, I should get some pretty nice quality stuff.

The last step is to let it rest in the sun for some weeks or months, and the yellow color will evaporate away.

For my purposes, it probably doesn't need to be crystal clear, but it will be fun to see how far I can take this.

There is likely to be quite a bit less than one liter of oil after this process, but what I have should be good.

I'm not sure if this will be worth it, but it is fun to see if it will work.

Keep an eye on this blog in the future, I plan to post on the results of this experiment over time.
